JZP Series
Tailor-Made Stability - The Broadband Adaptability of JZP Vibration Isolators
Different devices have vastly varying vibration isolation needs due to differences in their mass, center of gravity, and operating frequencies. Xi'an Hoan Microwave Co., Ltd. understands this well – its JZP rubber damping vibration isolators are not fixed standard products, but a serialized solution with excellent broadband adaptability.
Engineers can precisely adjust the stiffness (rated load) and damping coefficient of JZP isolators by modifying the rubber formula (such as carbon black content and polymer type), vulcanization process, and the isolator's shape and structure (such as cylindrical, rectangular, or ribbed designs). This allows the JZP series to offer multiple specifications and models, matching equipment ranging from tens of kilograms to several tons in weight, and optimized for different interference frequencies.
For example, for devices with high-speed rotating motors that mainly generate high-frequency vibrations, models with slightly lower stiffness, emphasizing isolation performance, can be selected. For heavy-duty equipment prone to low-frequency, large-amplitude swaying, models with higher damping, capable of quickly suppressing transient impacts, are preferred. This "tailor-made" design philosophy ensures that every device equipped with JZP isolators receives the most suitable vibration isolation solution, thereby achieving optimal performance and the longest service life – a testament to Hong'an Microwave's in-depth, customer-oriented design approach.

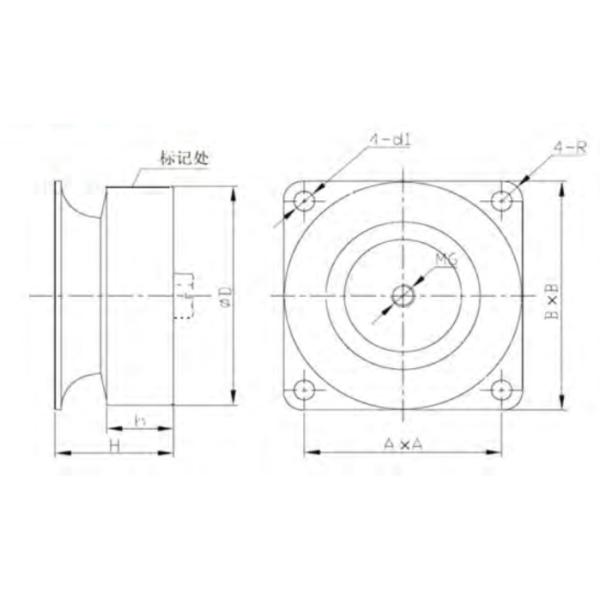

Dimension Parameter Table
| Model | D | H | h | A | B | d1 | MG | R |
| JZP | 58 | 29 | 17 | 50 | 60 | ∅5.5 | M6 | 5 |
Technical Parameter Table
| Model | Pz Nominal Load (kg) | Deformation Displacement (mm) | Resonant Frequency (Hz) | Working Temperature (℃) | Shock (ks) | Peak response G |
| JZP-2.5 | 2.5 | ≤0.3 | 35±3 | -45～+65 | 100g/6ms | ≤3.6Km/s2 |
| JZP-3.2 | 3.2 |
| JZP-4.2 | 4.2 |
| JZP-5.2 | 5.2 |
| JZP-6.0 | 6.0 |
| JZP-7.0 | 7.0 |
| JZP-7.5 | 7.5 |
| JZP-8.5 | 8.5 |
| JZP-10.5 | 10.5 |
| JZP-13.5 | 13.5 |
| JZP-15 | 15 |
Impact

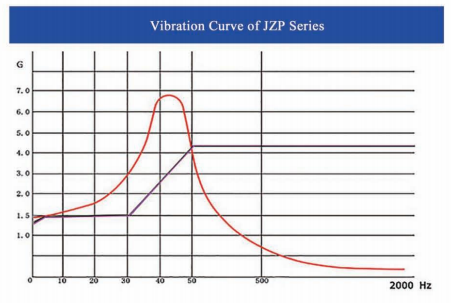

Vibration Curve
FAQ
1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.
2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.
3.Q:What is the lead time?
A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our
factory has stock.
4.Q:Can I get some samples before place order and how long for a sample?
A:Yes, sample order is accepted
5.Q:How is your shipping?
A:1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.
6.Q:Do you offer discounts for bulk orders?
A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.

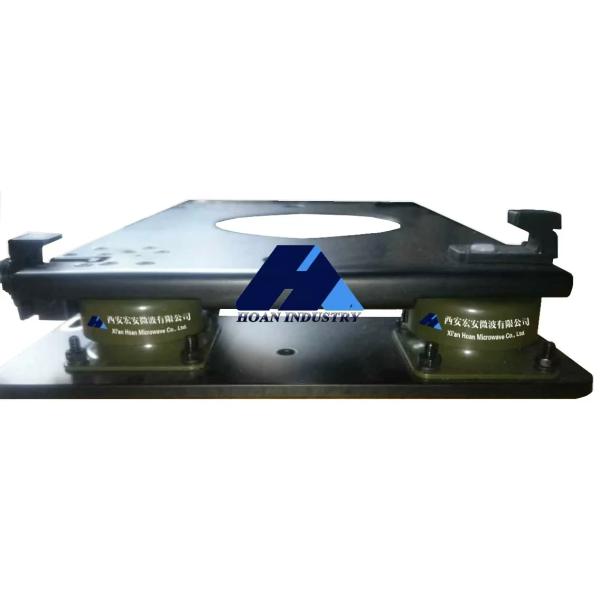

Customer Photos
